01
What it is
A water-treatment UV system physically inactivates bacteria and viruses without adding disinfecting chemicals.
UV Water Sterilizer
Industrial UV Disinfection Equipment
- ≥99.99%
- Sterilization
- 0.5–500 m³/h
- Capacity
- 254 nm
- Wavelength
Konche UV water sterilizers provide chemical-free disinfection for water treatment processes. UV energy inactivates microorganisms in water and can be applied as a final disinfection stage or integrated into a complete water treatment system.
Discuss Your Requirement ↗
KONCHEINDUSTRIAL WATER TREATMENT SYSTEMSMODEL KONCHE UV · UV WATER DISINFECTIONCHEMICAL-FREENO RESIDUALLP + MP RANGEENGINEERED BY KONCHE · 2026
QUICK TECHNICAL ANSWER
What is an industrial UV water disinfection system?
KONCHE UV water disinfection: four chemical-free series — 254 nm low-pressure, 185+254 nm TOC, 200–400 nm medium-pressure and ozone — ≥99.99% inactivation across 0.5–500 m³/h.
What it delivers
- ≥99.99% inactivation with zero chemical residue and zero by-products
- Four-series coverage from 0.5 to 500 m³/h — one supplier for every disinfection duty
- Dual-wavelength options combine sterilization and TOC control in one machine
Why trust KONCHE
- Disinfection equipment built since 1997 — 28 years of application engineering
- More than 500 clients served, including major electronics manufacturers
- Genuine lamps, sleeves and ballasts in stock with replacement reminders
Where we stand out
| What matters to you | How KONCHE delivers |
|---|---|
| Chemical-free compliance | No THMs or residuals versus chlorination |
| Four-series coverage | Low-pressure, TOC, medium-pressure and ozone from one partner |
| Dual wavelength | Kill and TOC control in one machine |
| Lower operating cost | Power only — cheaper than chemical dosing |
Explore: Low-pressure UV · Medium-pressure UV · TOC degradation · Ozone
PRODUCT CAPABILITY
Chemical-free
disinfection.
The right UV water sterilizer is selected according to flow rate, UV transmittance, target disinfection requirement, installation environment and process position.
02
How it is used
Installed near the end of the treatment line, water flows through a UV chamber. Quartz sleeves are cleaned and lamps replaced on schedule.
03
Where it fits
Municipal supply, industrial process water, pure and ultrapure loops, desalination, reuse, recirculating systems and drinking-water polishing.
04
Effectiveness
Suitable designs can achieve up to 99.99% microbial inactivation. UV does not remove salts, metals or colloids, and high turbidity can reduce performance.
05
Energy consumption
Energy is mainly consumed by the UV lamps. Required power depends on flow, UV transmittance, target dose and lamp technology.
06
Cost
Operating costs include electricity, sleeve cleaning and lamp replacement, typically after 8,000–10,000 operating hours.
Product documentation
Industrial UV disinfection is a chemical-free family covering the four series KONCHE builds: 254 nm low-pressure sterilizers for everyday flows, 185+254 nm TOC-degradation units for ultrapure water, 200–400 nm medium-pressure systems for large flows and resistant organisms, and ozone generators for loop-wide deep disinfection. All series deliver ≥99.99% inactivation with no chemical residues, no THMs and no disinfection by-products. UV lamp powers span 30–1200 W with ozone outputs of 5–500 g/h; treatment flows run 0.5–500 m³/h; lamp life is typically 8,000–10,000 operating hours; chambers are 316L stainless with IP65/IP67 protection. Systems install in-line on new or existing piping within a day and pair naturally — UV for continuous duty, ozone for periodic deep disinfection — so drinking-water, purified-water, reuse, pool and food lines can all replace chlorination without by-products. KONCHE has matched these series across 28 years of projects, with genuine lamps and consumables supplied from stock.

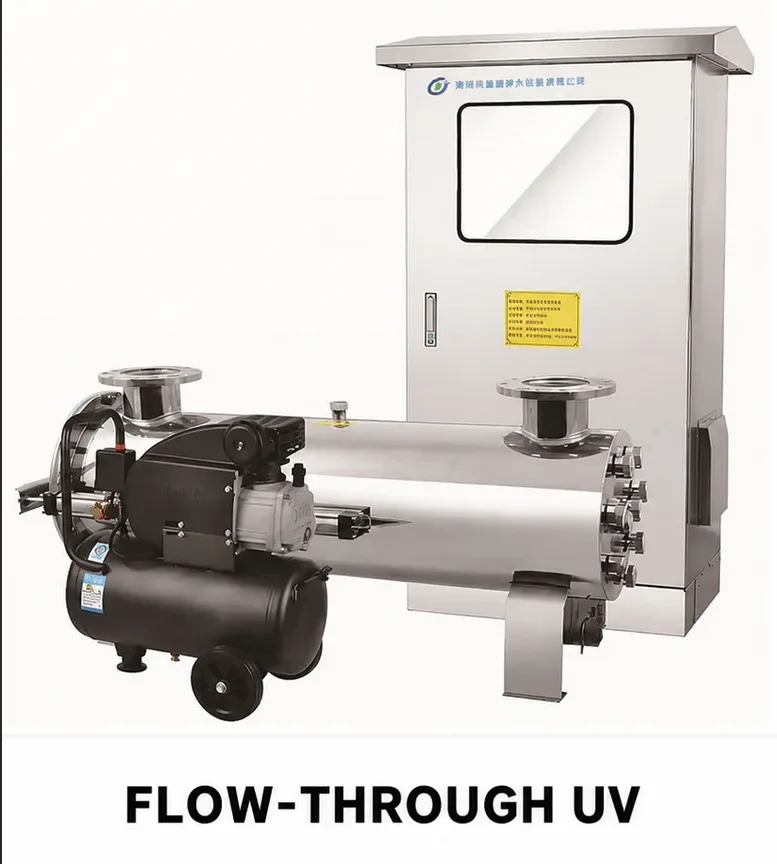

LOW-PRESSURE UV
Efficient disinfection for everyday flows.
Low-pressure UV water sterilizers are suitable for efficient and stable disinfection in drinking water, purified water and many process-water applications.
MEDIUM-PRESSURE UV
High-intensity output for demanding duty.
Medium-pressure UV water sterilizers provide high-intensity output for higher-flow or more demanding applications, including wastewater disinfection and larger water treatment projects.
SELECTION FACTORS
Specified around the process.
Selection follows flow rate, UV transmittance, target disinfection requirement, installation environment and process position.
APPLICATIONS
Protection across industries.
Drinking water, food and beverage water treatment, industrial process water, wastewater treatment effluent, reclaimed-water reuse and aquaculture-related applications.
TECHNOLOGY COMPARISON
Which disinfection
technology fits?
Same-caliber comparison of the four disinfection approaches in this category. Every value is a reference range documented on the linked product page and applies to the stated conditions, not a project guarantee.
| Comparison dimension | Low-pressure UV | Medium-pressure UV | TOC UV | Ozone |
|---|---|---|---|---|
| Output | 254 nm germicidal | Broad-spectrum 200–400 nm | 185 nm + 254 nm dual wavelength | Ozone generated from air or oxygen |
| Power / output class | High-intensity low-pressure lamps | 2–10 kW | Dual-wavelength UV lamps | 1–200 g/h |
| Typical flow | 0.5–300 m³/h | Up to 500 m³/h | Ultrapure-water loops | Duty-dependent |
| Documented performance | Up to 99.99% microbial inactivation in suitable conditions | Large-flow disinfection | TOC toward 0.5 μg/L | Sterilization, COD reduction, decolorization, odor control |
| Best duty | Routine disinfection of process and drinking water | Large flows or challenging water | TOC control in ultrapure-water loops | Oxidation duties and pure-water storage disinfection |
| Limitations to plan for | No chemical residual; lamp count grows with flow | Higher power draw; more complex lamp handling | Ultrapure-water applications only | Contact time and tail-gas destruction required; material compatibility checks |
Decision guidance: For routine disinfection at everyday flows, low-pressure UV is the economical choice. Medium-pressure UV covers large flows and challenging water with fewer lamps. TOC UV belongs inside ultrapure-water loops where trace organics matter, and ozone handles oxidation duties such as COD reduction, decolorization and odor control. KONCHE confirms the technology against flow, transmittance and the target standard during proposal review.
Reference values verified against the linked product pages · Updated 15 August 2026
PROJECT INQUIRY
Tell us about
your water.
Send your flow rate and water-quality information to Konche for industrial UV water sterilizer selection.
Get Expert Support ↗
